GRA-TEC LOW PRESSURE WIRE CLIP

The GRA-TEC Low Pressure (up to 250 psi) Wire Clip Connectors were designed for high volume, low cost applications. Their compact design allows for easier handling, lower storage costs, lighter weight, and close proximity applications.

When used in conjunction with the Swage System, illustrated on pages 36 and 37, the low pressure wire clip assembly presents an inexpensive, attractive package.

KEY FEATURES:

• lower costs for volume applications
• reduced weight due to compact design
• clip retention on the Male GRA-TEC Spud
• 360" rotation using an O-ring seal
• designed for standard air line pressures
• reduced physical size for greater package density
• can be installed using impact wrench for quick, close proximity applications
• couples with the SWAGE SYSTEM to provide low cost tube assemblies for high production applications
• lower field maintenance costs due to ease of assemblyldisassembly
• All GRA-TEC male spud ends can be used with the low pressure female component

HOW TO USE:

To assemble, simply squeeze the clip, insert the male GRA-TEC spud and release the clip.

To disassemble, squeeze the clip and pull out.

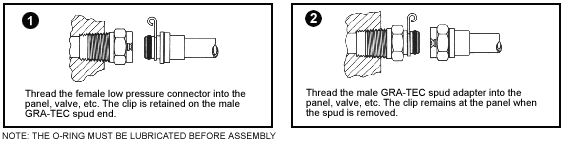

TWO POPULAR WAYS TO USE THE GRA-TEC LOW PRESSURE SYSTEM:
