200 Series Couplings · 1/8" System
COUPLING INSERTS
200 Male Pipe Thread
202 Female Pipe Thread
204 HoselTube Barb
206 90 degree Elbow Hose Barb
208 Plastic Tube Fitting "PTF"
210 90 degree Elbow Plastic Tube Fitting "PTF"
212 Swage Straight
214 90 degree Swage Elbow
COUPLING BODIES
201 Male Pipe Thread
203 Panel Mount Hose/Tube Barb
205 Panel Mount Plastic Tube Fitting "PTF"
207 In-line Hose/Tube Barb
209 Swage
211 In-line Plastic Tube Fitting "PTF"
213 Press Fit
|
400 Series Couplings · 1/4" System
COUPLING INSERTS
400 Male Pipe Thread
402 Female Pipe Thread
404 Hose Barb
406 Plastic Tube Fitting "PTF"
408 90 degree Elbow HoselTube Barb
410 90 degree Elbow Plastic Tube Fitting "PTF"
412 Swage Straight
414 90 degree Swage Elbow
COUPLING BODIES

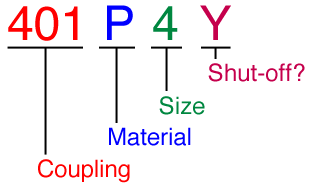

401 Male Pipe Thread
403 Panel Mount Hose/Tube Barb
405 Panel Mount Plastic Tube Fitting "PTF"
407 In-line Hose/Tube Barb
409 Swage
411 In-line Plastic Tube "PTF"
413 Press Fit
|
